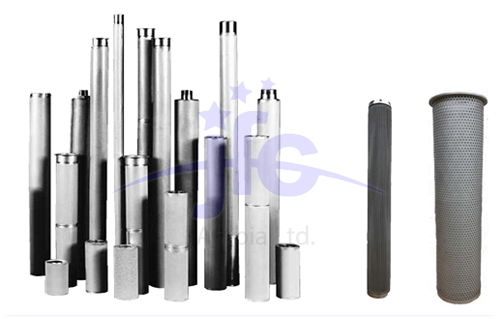

Metalic Filter Cartridge
JFC Arabia has a capability to judge the type of the filter and the sizing of filter housing. Based on the design condition filter cartridge will be selected and based on the flow and flux rate the housing size will be designed. Among various type of filter cartridge cylindrical type of filter element will be widely used and these can be segmented into cleanable and disposable type. The materials for the cleanable type filter element mostly use metal such as metal fiber, metal powder and multi layer type. The punching plate with mesh and for the disposable type PP, Cotton, PE and Glass Fiber are dominant. Some of these filter elements for instance metal type of filter element with mesh, glass fiber and cotton type are being purchased from its specialized company such as Pall, Packer, Mott and other reliable companies worldwide and the rest of them can be manufactured by ourselves.
Advantages of Metallic filter Cartridge
- It is advantageous in the side of life and protection of Environment as it is possible to re-use after cleaning or reverse cleaning comparing existed cartridge.
- It is beneficial in the super-low temperature, high temperature and pressure high Pressure
- It maintains absolute ration of filtration.
- The ratio of porous is very high
- Pressure loss is very low
- Filtration of process for nuclear power generation and industry
- Filtration of process for petrochemical and refinery
- Filtration of gas and operating of oil pressure
Ordering Information
| 1 | JFC Code | JC: Cleanable JD: Disposable |

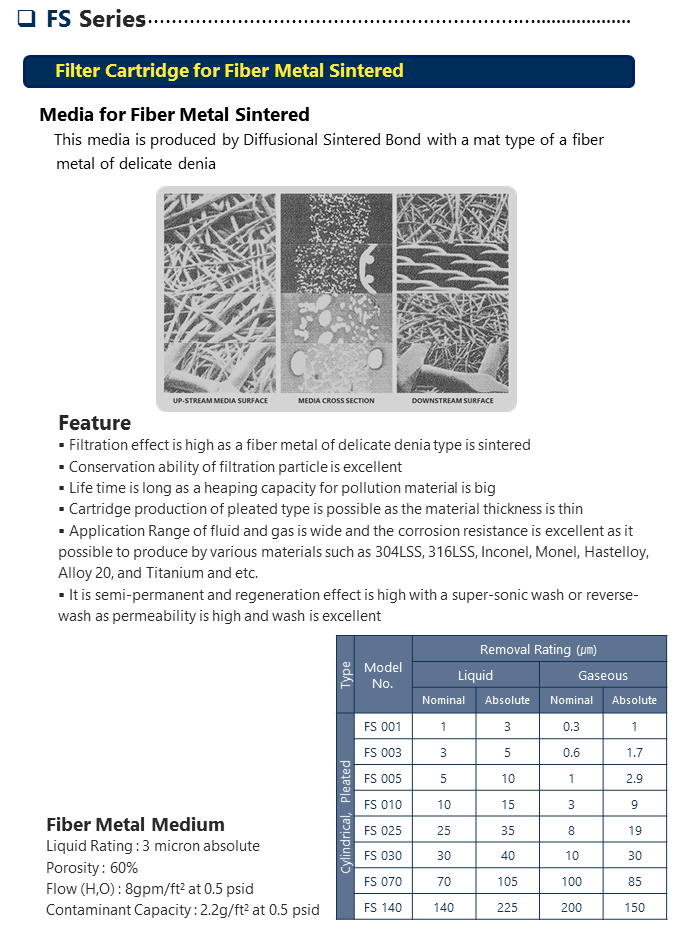

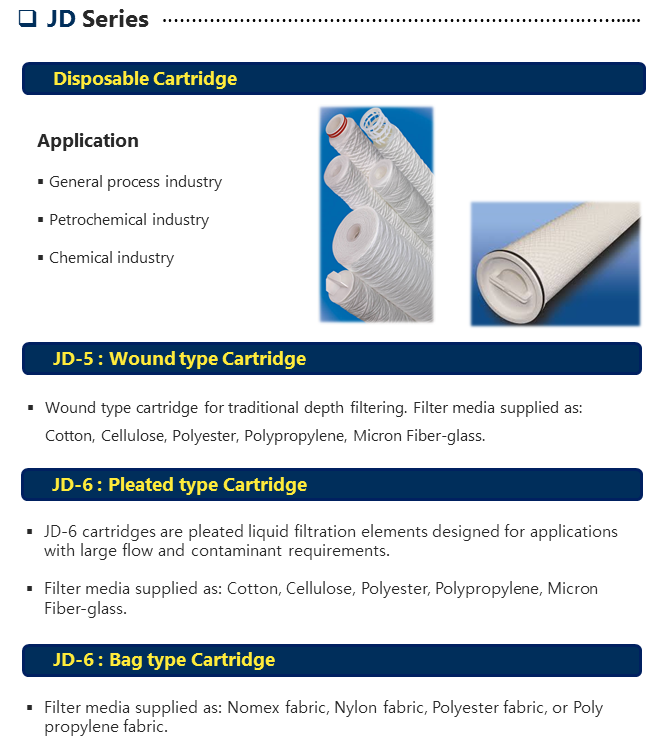

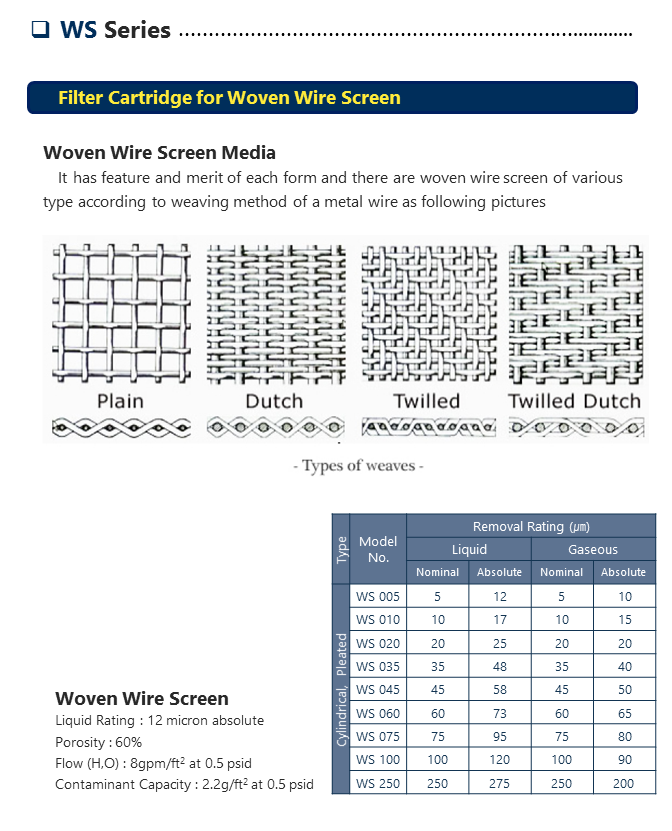

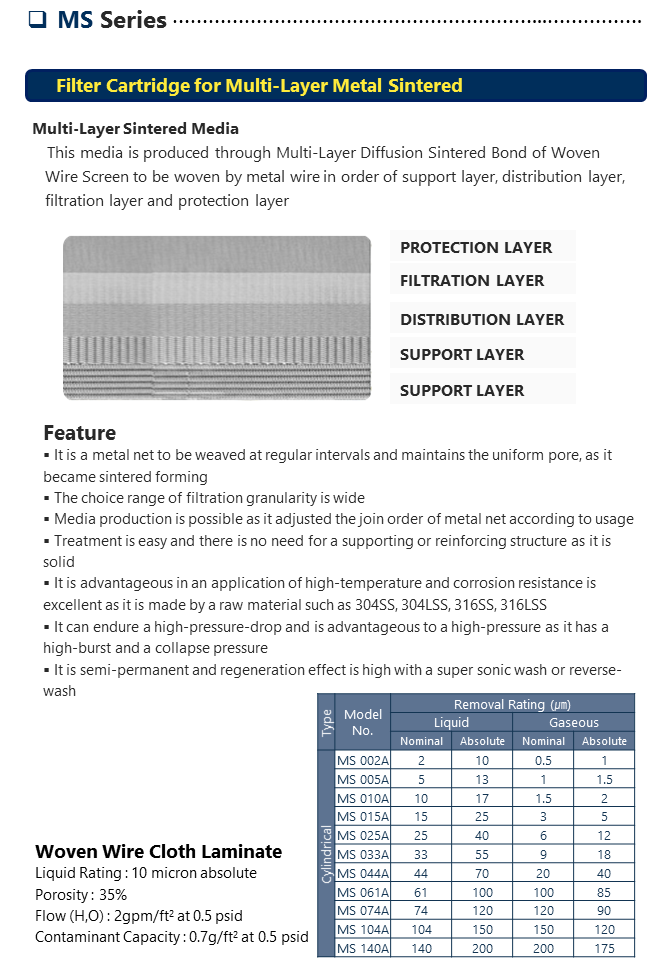

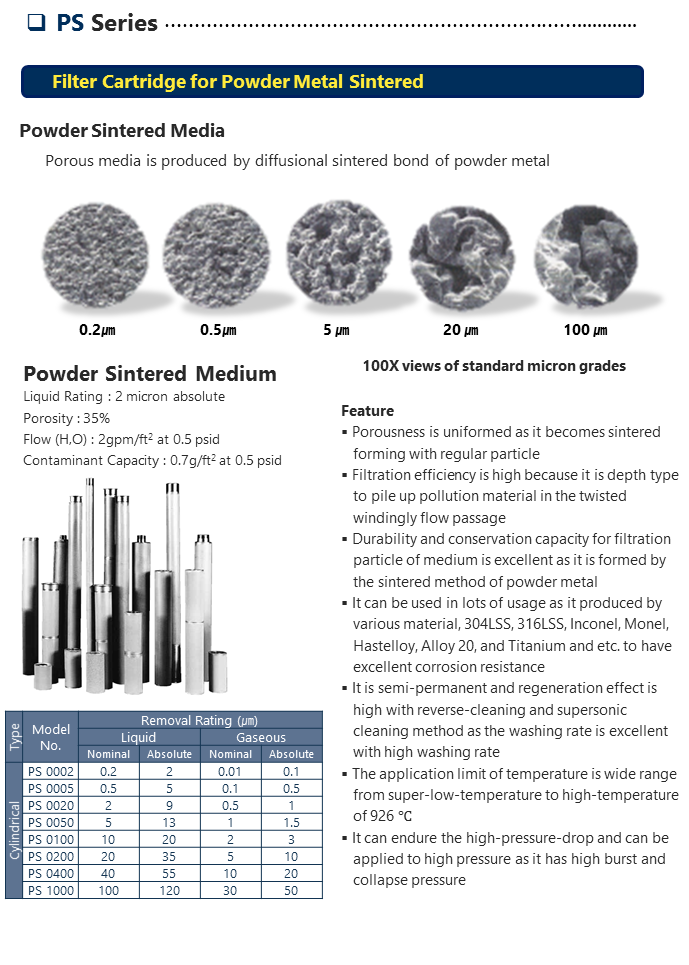

| 2 | Media Form | JC-1 : Powder Sintered JC-2 : Multi-Layer Woven Wire Sintered JC-3 : Fiber Metal Sintered JC-4 : Woven Wire Screen JD-5 : Wound JD-6 : Pleated JD-7 : Bag |
| 3 | Cartridge Type | C : Cylindrical P : Pleated |
| 4 | Removal Grade |
Model No. according to series |
| 5 | Cartridge OD/Length |
10 : 10” (OD : 2.5”) 20 : 20” (OD : 2.5”) 30 : 30” (OD : 2.5”) 40 : 40” (OD : 2.5”) 436 : 36” (OD : 4.5”) |
| 6 | End Connection | DO : Double Open Ends SO : Single Open End NPT : NPT Single Open End |
